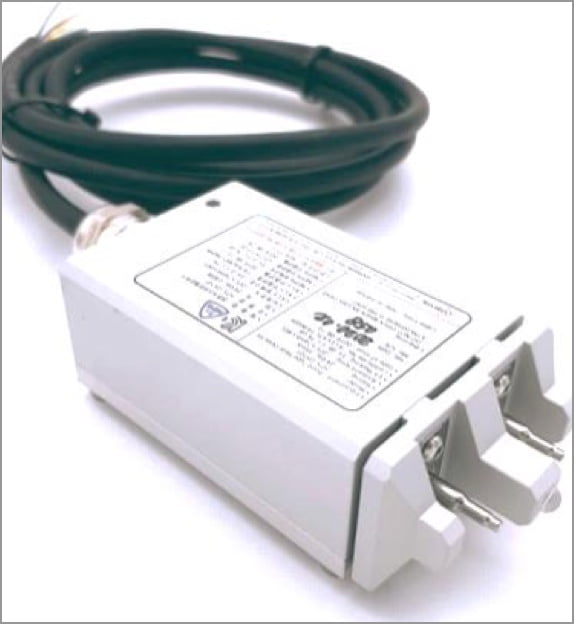

High Temp Senosr_HTS-DS101

proof and fire safety certification completed (August 2019)/NEPSI certification co

• Thermostatic motion sensor
• Exclusive design, 80 ℃, ordinary type, employment type, semiconductor type.
• Pressure and explosion-proof level_ExdIICT6
• Using NTC Thermistor components, detection can be carried out quickly and accurately.
• Using Dual Sensor 's And Logic can improve Sensing sensitivity.
• When Fault Alarm_ Sensor Fail is disconnected / short-circuited from Circuit , it comes with Fail Signal Output.
• Output condition 1: The sensing temperatures of the first temperature sensor and the second temperature sensor are above 80 °C at the same time → fire alarm
• Output condition 2: The sensing temperature of the first temperature sensor is 90 °C or above
   + the status of the second temperature sensor is circuit abnormality / monitoring → fire alarm
• Output condition 3: The sensing temperature of the second temperature sensor is 90 °C or above
   + the status of the first temperature sensor is circuit abnormality / monitoring → fire alarm
• Applicable LED Indicator: Normal(GRN), Sensing (RED), Fault(GRN Blinking)

•
•

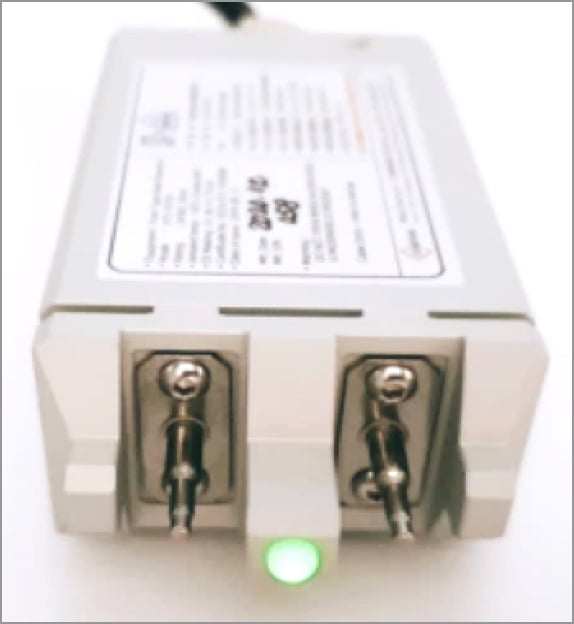

  • Normal (GRN LED On)

•

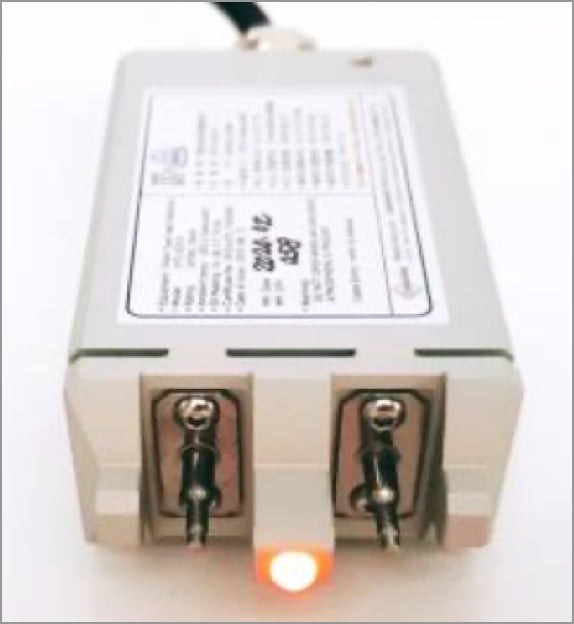

  • When sensing (RED LED On)
